Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Diện tích bộ lọc (m2): | 4-55 | Kích thước tấm (mm): | 500*500 |
|---|---|---|---|
| Độ dày bánh (mm): | 30 | Khối lượng buồng lọc (L): | 60-833 |
| Tấm số (PC): | 9-20 | Áp lực lọc (MPA): | ≤0.6 |
| Công suất động cơ (kw): | 2.2-4 | Trọng lượng (kg): | 890-5000 |
| Bảo hành: | 12 tháng | Tình trạng: | Mới |
| Cổng: | Qingdao Trung Quốc |

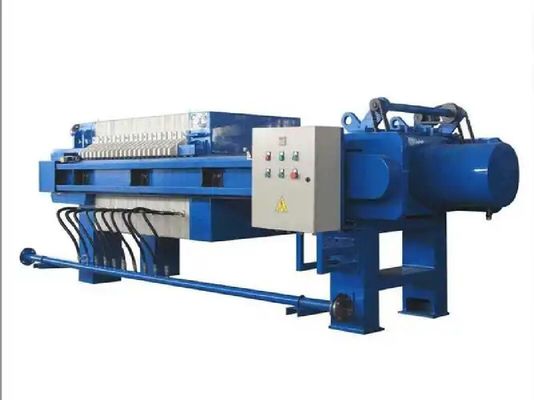

Pull Open The Filter Press Hydraulic Automatic Pressure Holding Machine Once
Product Introduction
Application Scope: The equipment is widely used in industries such as concrete, ceramics, coking, and building materials.
Product Features:
1. The primary advantage of the single-pull chamber filter press lies in its rapid plate-pulling speed and automatic auxiliary discharge.
2. Compact structure, labor-saving design, and high automation level.
3. Integrated with an automatic vibration device, it enables vibration-assisted discharge for evenly spaced filter plates, achieving fully automated unloading.

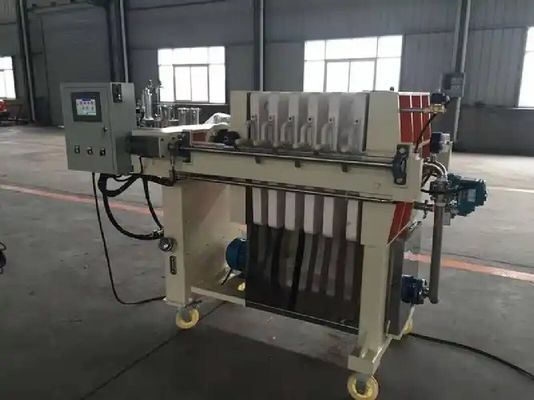

Product Display
Product Parameters
| Model | Filter area(㎡) | Plate size(mm) | Cake thickness(mm) | Filter chamber volume(L) | Plate NO.(pcs) | Filtration pressure(Mpa) | Motor Power(kw) | Weight(kg) | Dimensions L*W*H(mm) | Foundation Size(mm) | ||||||||
| L | B | D | H | |||||||||||||||
| X | A | Y4/450-30U | B | 4 | 500*500 | 30 | 60 | 9 | ≤0.6 | 2.2 | 890 | 2230*800*900 | 1550 | 390 | 700 | 560 | ||
| M | K | |||||||||||||||||
| X | A | Y5/450-30U | B | 5 | 79 | 12 | 920 | 2630*800*900 | 1800 | |||||||||
| M | K | |||||||||||||||||
| X | A | Y6/450-30U | B | 6 | 700*700 | 95 | 7 | 2.2 | 1450 | 2200*1050*1150 | 1490 | 560 | 1110 | 700 | ||||
| M | K | |||||||||||||||||
| X | A | Y8/450-30U | B | 8 | 119 | 9 | 1500 | 2400*1050*1150 | 1640 | |||||||||
| M | K | |||||||||||||||||
| X | A | Y10/630-30U | B | 10 | 154 | 12 | 1610 | 2540*1050*1150 | 1890 | |||||||||
| M | K | |||||||||||||||||
| X | A | Y12/630-30U | B | 12 | 178 | 14 | 1720 | 3130*1050*1150 | 2140 | |||||||||
| M | K | |||||||||||||||||
| X | A | Y15/630-30U | B | 15 | 226 | 18 | 1880 | 3550*1050*1150 | 2490 | |||||||||
| M | K | |||||||||||||||||
| X | A | Y10/870-30U | B | 10 | 870*870 | 154 | 7 | 2.2 | 1940 | 2720*1270*1300 | 1580 | 700 | 1380 | 785 | ||||
| M | K | |||||||||||||||||
| X | A | Y20/870-30U | B | 20 | 307 | 15 | 2230 | 3500*1270*1300 | 2430 | |||||||||
| M | K | |||||||||||||||||
| X | A | Y18/1000-30U | B | 18 | 1000*1000 | 270 | 10 | 4 | 1850 | 3470*1400*1400 | 2320 | 780 | 1480 | 1000 | ||||
| M | K | |||||||||||||||||
| X | A | Y35/1000-30U | B | 35 | 525 | 20 | 2540 | 5470*1400*1400 | 3620 | |||||||||
| M | K | |||||||||||||||||
| X | A | Y28/1250-30U | B | 28 | 1250*1250 | 420 | 10 | 4 | 3600 | 4110*1770*1600 | 3220 | 850 | 1740 | 1250 | ||||
| M | K | |||||||||||||||||
| X | A | Y55/1250-30U | B | 55 | 833 | 20 | 5000 | 6510*1770*1600 | 4320 | |||||||||
| M | K | |||||||||||||||||
Q&A
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time?
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms?
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
