Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tình trạng: | Mới | Bảo hành: | 12 tháng |
|---|---|---|---|
| Chiều rộng đai: | 500 | Dung tích: | 5-15m³ giờ |
| Cổng: | Qingdao Trung Quốc | Phân loại: | Thiết bị thay đồ quặng |
| Động cơ lái: | 0,55kW |

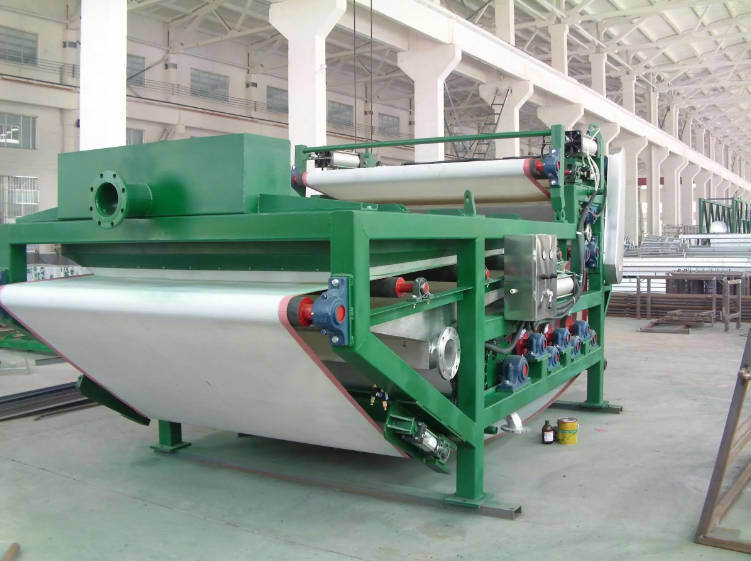

Fully Automatic Dehydration And High Efficiency Belt Thickener
The belt thickener is a mechanical equipment used for sludge pre-concentration treatment. It achieves sludge reduction through a combination of chemical flocculation and physical dehydration. Its core work process includes: after the sludge is mixed with flocculant, free water is removed through the gravity dewatering section, and then multi-stage extrusion and dehydration is carried out through the wedge-shaped pre-pressure zone and the S-shaped pressing section, and finally the mud cake is discharged.
The DN belt sludge thickener is a fully automatic sludge thickener that can replace the traditional sludge thickening tank. It can directly thicken the sludge in the secondary sedimentation tank quickly and continuously, and sludge concentration after treatment is stable and adjustable in the range of 90-96%. With this slurry thickener, there is no need to build a sludge thickening tank any more, which greatly reduces construction cost and floor space. This model adopts international advanced technoloay and the most developed desian. which can meet the requirements of different industries for sludge treatment.
Product Parameters of Ore Dressing Equipment
Technical Data Of Cast Iron Filter Press
| Model | Belt Width |
Capacity (m³hr) | Drive motor(kw) | Mixing Power(kw) | Size (mm) | Weight(kg) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| L | W | H | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DZDS-500 | 500 | 5-15 | 0.55 | 0.75 | 5100 | 1100 | 2100 | 500 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DZDS-750 | 750 | 8-20 | 0.55 | 0.75 | 5100 | 1350 | 2100 | 750 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DZDS-1000 | 1000 | 10-25 | 0.55 | 0.75 | 5100 | 1600 | 2100 | 1000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DZDS-1250 | 1250 | 12-35 | 0.55 | 0.75 | 5100 | 1850 | 2100 | 1250 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DZDS-1500 | 1500 | 15-40 | 0.75 | 1.1 | 5100 | 2100 | 2100 | 1500 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DZDS-1750 | 1750 | 20-45 | 0.75 | 1.1 | 5100 | 2350 | 2100 | 1750 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DZDS-2000 | 2000 | 30-50 | 0.75 | 1.5 | 5100 | 2600 | 2100 | 2000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DZDS-2500 | 2500 | 35-70 | 0.75 | 1.5 | 5100 | 2850 | 2100 | 2250 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DZDS-3000 | 3000 | 40-80 | 1.5 | 1.5 | 5100 | 3100 | 2100 | 2500 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Remark | Decided by the nature of wasrewater | Can be customized | We will supply with drawings | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

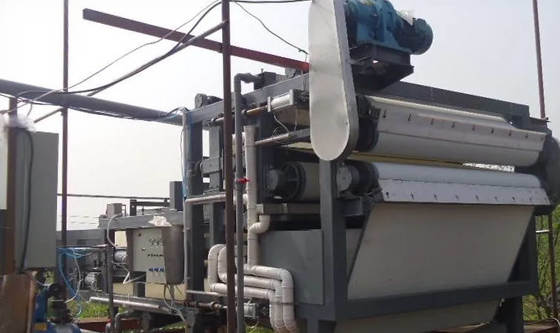

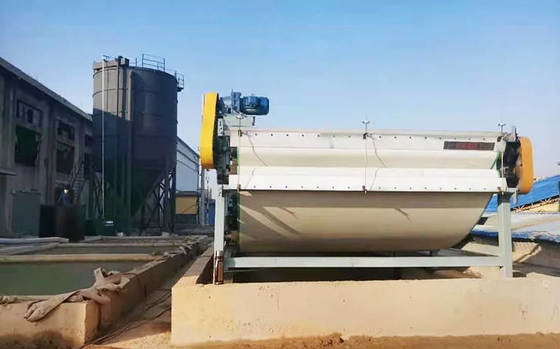

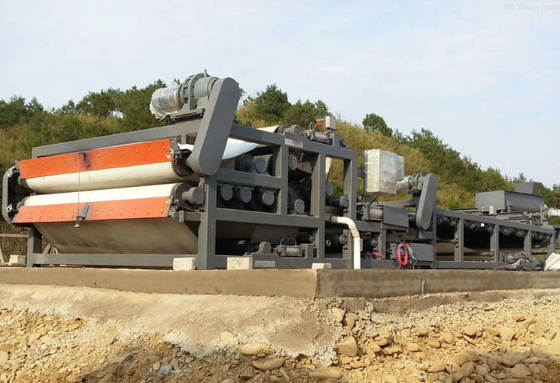

Product Display of Ore Dressing Equipment
Ore Dressing Equipment
