Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Số lượng phòng: | 20-50 | Thông số tấm (mm): | 1500*1500 |
|---|---|---|---|
| Thể tích buồng (m³): | 1.143-2.856 | Công suất lắp đặt (KM): | 15 |
| Trọng lượng tịnh(t): | 25,8-39 | Kích thước (mm): | 8680*3250*3904 |
| Bảo hành: | 12 tháng | Tình trạng: | Mới |
| Cổng: | Qingdao Trung Quốc |
Explosion Proof Design For Welding Plate And Frame Diaphragm Filter Press
Product Introduction
This device supports PLC fully automatic control and has functions such as synchronous feeding, automatic cleaning of filter cloth, and hidden flow discharge. The workflow is divided into multiple stages such as filtration, extrusion, washing, and drying. The technical highlights include tower filter plate design, synchronized operation of multiple oil cylinders, and corrosion-resistant filter cloth, with a maximum filtration pressure of 20MPa, suitable for continuous production scenarios such as chemical, metallurgical, and environmental protection. Some models such as HVPF and WLY series have achieved automatic discharge of filter plates and regeneration of filter cloth, forming mature application cases in fields such as gold cyanide and alumina production.

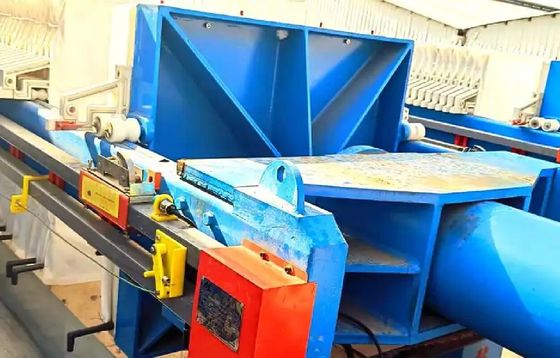

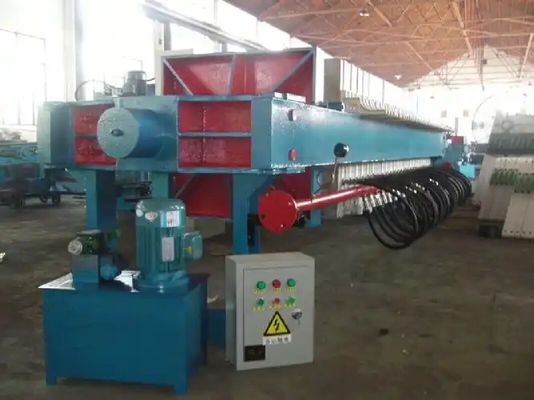

Product Display
Product Parameters
| Models | Number of Chambers | Plate Speifications (mm) |
Area(m²) | Chamber Volume (m³) | Installed Power (KM) |
Dimensions(mm) | Net Weight(t) | ||
| L | W | H | |||||||
| XZD-1520 | 20 | 1500x1500 | 76.2 | 1.143 | 15 | 8680 | 3250 | 3904 | 25.8 |
| XZD-1526 | 26 | 1500x1500 | 99.0 | 1.485 | 15 | 9520 | 3250 | 3904 | 28.44 |
| XZD-1530 | 30 | 1500x1500 | 114.2 | 1.713 | 15 | 10080 | 3250 | 3904 | 30.2 |
| XZD-1536 | 36 | 1500x1500 | 137.1 | 2.057 | 15 | 10920 | 3250 | 3904 | 32.84 |
| XZD-1540 | 40 | 1500x1500 | 152.3 | 2.285 | 15 | 11480 | 3250 | 3904 | 34.6 |
| XZD-1550 | 50 | 1500x1500 | 190.4 | 2.856 | 15 | 12880 | 3250 | 3904 | 39 |
ZTIC Heavy Industries is your business partner in the After Market.
ZTIC able to provide:
1. ENGINEERED SPARES - DESIGN AND MANUFACTURING
2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES
3. HUGE MACHINE SHOP CAPABILITIES
4. TRAINING PROGRAMMES
5. PREVENTATIVE MAINTENANCE PROGRAMS
6. PREVETATIVE MAINTENANCE SERVICES
7. COMPREHENSIVE MAINTENANCE PROGRAMS
ZTIC owns a professional testing and metrology institute which provides advanced testing methods such as nondestructive testing, industrial chemical analysis, metallographic testing and analysis, mechanical testing, sample preparation, meter/length measurement, weighing apparatus verification, and weighman inspection. Our metrology institute has taken a leading role in China.
ZTIC owns nearly two hundred types of advanced testing equipment, nine different measurement standards and nearly twenty types of world-class testing equipment which have been imported from international locations such as Germany, Japan, USA, UK and Belgium.
