Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tình trạng: | MỚI | Bảo hành: | 12 tháng |
|---|---|---|---|
| Đường kính: | 800mm | Tốc độ xoay: | 1200rad/phút |
| Cảng: | Qingdao Trung Quốc | Phân loại: | Thiết bị thay đồ quặng |
| Âm lượng: | 98L |
High-Efficiency SD Type Hanging Bag Centrifuge
The SD-type hanging bag centrifuge is a filtration centrifuge that uses the centrifugal force generated by the high-speed rotation of the drum to achieve solid-liquid separation. Its hanging bag unloading structure significantly reduces labor intensity and improves production efficiency.
Primary Applications
Suitable for solid-liquid separation operations in chemical, pharmaceutical, food, and other industries. Capable of separating suspensions containing loose solid particles, and ideal for applications requiring frequent filter bag cleaning.
Product Parameters of Ore Dressing Equipment
| Rotating Drum | |||||||||
| Model | Diameter(mm) | Heigh(mm) | Rotation Speed(rad/min) | Volume(L) | Material Weight(kg) | Centrifugal Factor(w2/g) | Power(kw) | Total Weight(kg) | DimensionL*B*H(mm) |
| SD800 | 800 | 360 | 1200 | 98 | 120 | 860 | 7.5 | 1500 | 1740*1380*1000 |
| SD1000 | 1000 | 400 | 1000 | 140 | 150 | 640 | 11 | 2000 | 1950*1560*1050 |
| SD1200 | 1200 | 450 | 800 | 230 | 240 | 600 | 15 | 3000 | 2370*1600*1000 |
| SD1500 | 1500 | 450 | 600 | 360 | 400 | 500 | 18.5 | 4800 | 2640*1850*1100 |

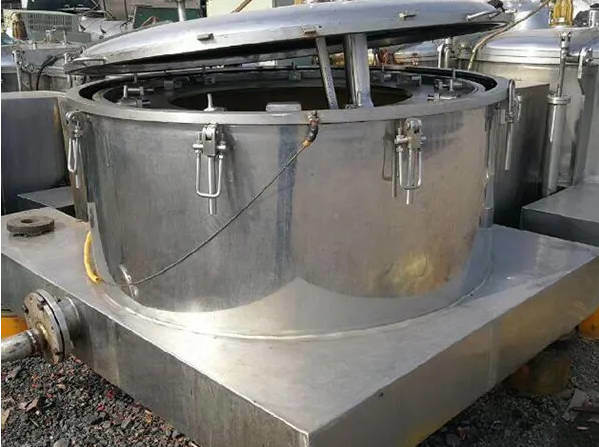

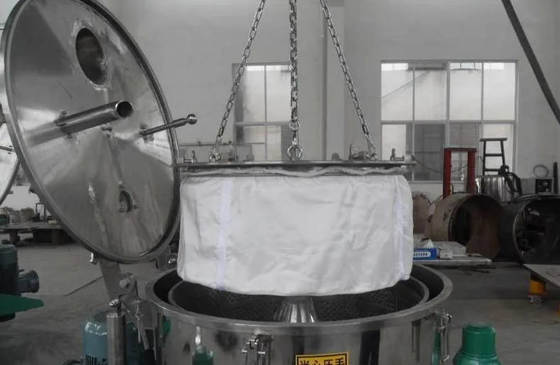

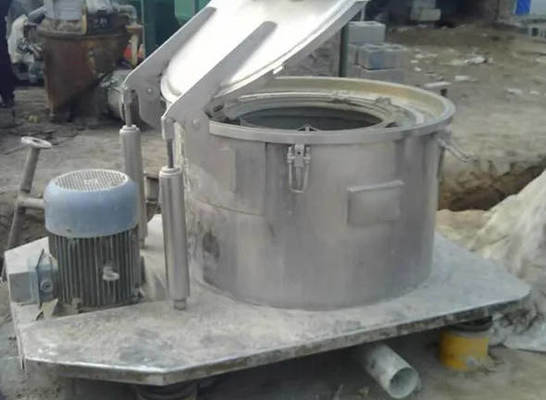

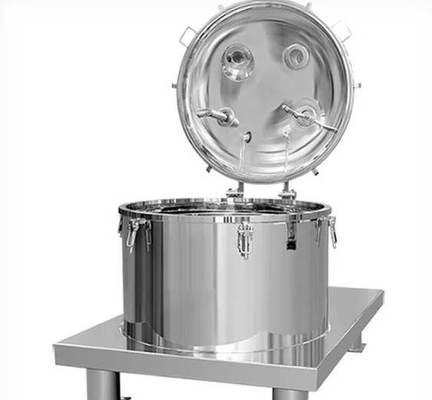

Product Display of Ore Dressing Equipment
Ore Dressing Equipment
