| Tên sản phẩm: | Băng tải xích | Tình trạng: | mới |
|---|---|---|---|
| Kiểu: | Truyền tải máy nâng | Ứng dụng: | Đá và vật liệu số lượng lớn |
| Bảo hành: | 12 tháng | Uasge: | Vật liệu xây dựng, hóa chất |
| Công nghiệp ứng dụng: | Nhà máy xi măng, Nhà máy thép, Nhà máy hóa chất & Lò đốt rác | Cảng: | Thanh Đảo |
| Phân loại: | Truyền tải máy nâng | Chiều rộng vành đai: | 400mm |
Chain Conveyors With Large Conveying Capacity And Long Conveying Distance
Chain conveyors are industrial equipment that use chains as the core transmission element to transport materials. They achieve large-scale transport of materials such as pallets and large turnover boxes through special chains (such as accumulation chains), and are widely used in production lines in industries such as electronics, food, and logistics.
Synchronous chain conveyors have two chains moving synchronously, suitable for various assembly lines. Belt conveyors are popular due to their large capacity, long transport distance, and low energy consumption, but their inability to bend in a flat plane limits their applicability. In coal mines, due to varying geological conditions, transport tunnels often encounter faults and must bend, forcing long-distance transport systems to be divided into multiple broken lines. This necessitates the use of multiple belt conveyors (or scraper conveyors) to form multi-segment broken line transport lines to complete the transport task.
Conveyor belts move based on the principle of friction drive, offering advantages such as large conveying capacity, long conveying distance, stable conveying, no relative movement between the material and the conveyor belt, low noise, simple structure, convenient maintenance, low energy consumption, and standardized components.
Product Parameters of Conveying Hoisting Machine
| Belt width(mm) | Conveying length(m)/Power(Kw) | Transfer speed(m/S) | Delivery volume (t/h) | ||
| 400 | ≤12/2.2 | 12∽20/2.2∽4 | 20∽25/3.5∽7.5 | 1.25∽2.0 | 30∽60 |
| 500 | ≤12/3 | 12∽20/3∽5.5 | 30∽30/5.5∽7.5 | 1.25∽2.0 | 40∽80 |
| 650 | ≤12/4 | 12∽20/4∽5.5 | 20∽30/5.5∽11 | 1.25∽2.0 | 80∽120 |
| 800 | ≤6/4 | 10∽15/4∽5.5 | 15∽30/5.5∽15 | 1.25∽2.0 | 120∽200 |
| 1000 | ≤10/5.5 | 10∽20/5.5∽11 | 20∽40/11∽22 | 1.25∽2.0 | 200∽320 |
| 1200 | ≤10/7.5 | 10∽20/7.5∽15 | 20∽40/15∽30 | 1.25∽2.0 | 320∽480 |

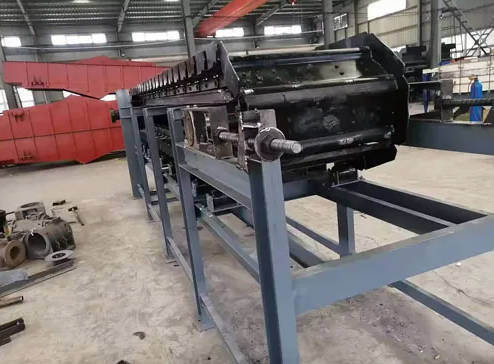

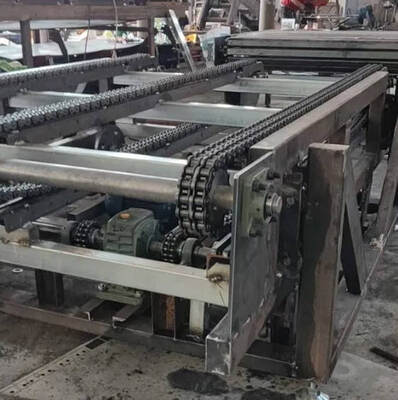

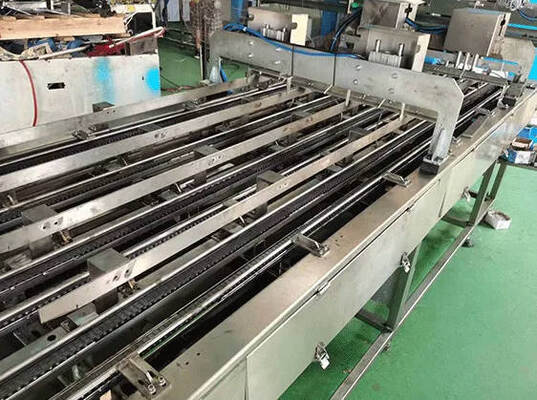

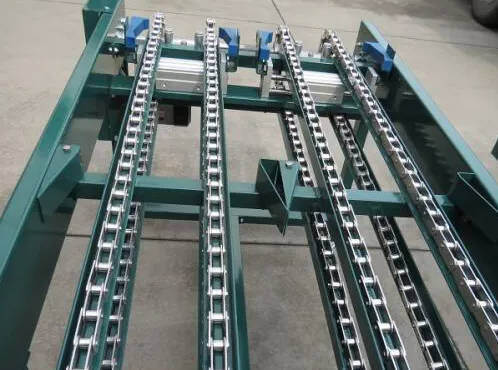

Product Display of Conveying Hoisting Machine
FAQ
Q: Why we believe in luoyang zhongtai industries co., ltd:
A: 1. More than 30 years experience.
2.We are the leading professional supplier of mining machinery, construction machinery, machines casting and forged parts.
3. All products achieved ISO9901:2000 quality management certificate and CE, ROHS certificates.
Q:Delivery time:
A: Parts lead time 1-2months, machines 2-3months.
Q:Payment terms:
A: Accept payment type: T/T, L/C, Western union,Cash.
30% deposit when signed contract. Full payment paid before shipping.
Q: Quality warranty?
A: Guarantee time: one year for main machinery. If something wrong we will provide the technical advice and find solution immediately. For those wearing parts we guarantee high quality parts for long-term supply.
Q: After sales service?
A: We can supply technical guide for machines running test and parts maintenance if end user needs.
