| Tình trạng: | Mới | Kiểu: | Phụ tùng máy khai thác |
|---|---|---|---|
| Từ khóa: | Giỏ màn hình ly tâm | Vật liệu: | Thép, thép không gỉ |
| Cổng: | Qingdao Trung Quốc | Bảo hành: | 12 tháng |
| Chức năng: | Sàng lọc\tách\sắp xếp\sàng lọc | Ứng dụng: | máy ly tâm |
| Làm nổi bật: | stainless steel vibrating screen basket,wear-resistant screen basket,vibrating screen accessories stainless steel |
||
Stainless Steel Screen Basket Vibrating Screen Accessories Wear-Resistant
Product Introduction
The screen basket is a key component of a centrifugal dehydrator. It rotates at high speeds and must withstand not only vibration loads but also severe impact from coal and water during operation. Therefore, it requires high strength and precision.
Centrifuge screen baskets are primarily used for dehydration in centrifugal dehydrators and are widely used in the coal, chemical, and metallurgical industries.
Product Advantages
1. A comprehensive range of varieties and specifications to meet the requirements of different coal types, qualities, and screening requirements.
2. Accurate dimensions with minimal error. The fixing bolt holes are free of misalignment or misalignment, saving time and effort in installation.
3. High-quality welding and a solid structure. No cracks or debonding of the screen bars.
4. Uniform screen gaps, a smooth screen surface, and a high aperture ratio for excellent screening performance.
Product Description
Used for solid-liquid separation in the coal, metallurgy, and chemical industries, and suitable for treating tailings and coal washing wastewater. Connects to the centrifuge main unit via flange bolts to ensure stable operation. Meets special operating requirements (such as ultrafine mineral powder screening and dehydration of high-moisture materials). Regularly clean screen gaps and inspect screen bar wear and weld strength.
Product Parameters
| Material: | stainless steel (304,316etc.) |
| Wedge Wire (mm): | Width : 0.75 1.50 1.80 2.30 3.00 3.30 3.70 |
| Support Rod (mm): | Width : 1.00 1.80 2.00 3.00 4.00 5.00 |
| Height : 2.00 2.50 3.00 5.00 6.00 8.00 | |
| Top & bottom Diameter: | Width Up To 2.5 meters |
| Length: | lengths up to 6 meters. |
| Slot size: | 0.02,0.05,0.1 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request. |
| Angle: | Other specifications can be customized according to customer’s requirement |

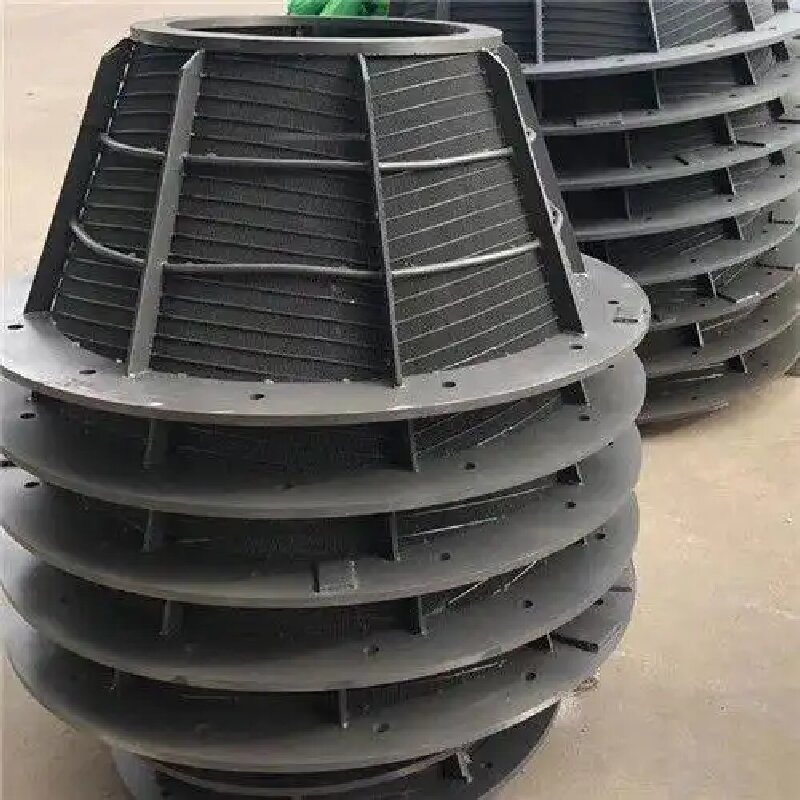

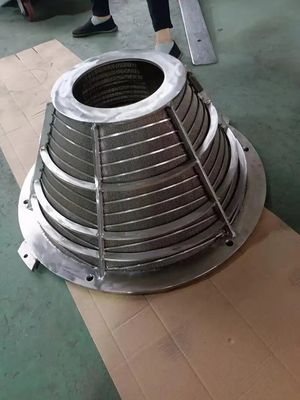

Product Dispaly
